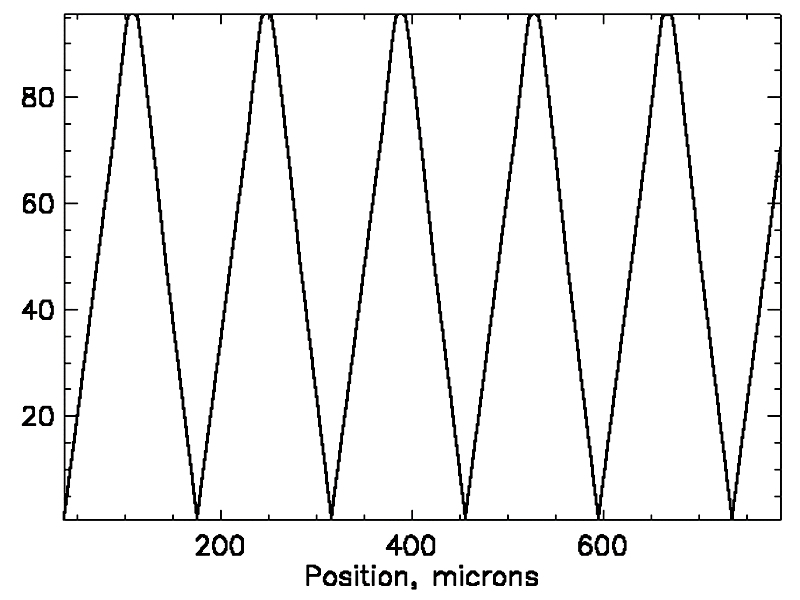

Fig. 8

Portion of a stylus profilometer trace for a deep echelle grating for IR spectroscopy. This grating, including deep (~57Вє) sloped facets, a flat top, and sharp bottom, is well resolved due to its extremely long period of ~140 microns. Height is in microns.
