Fig. 7

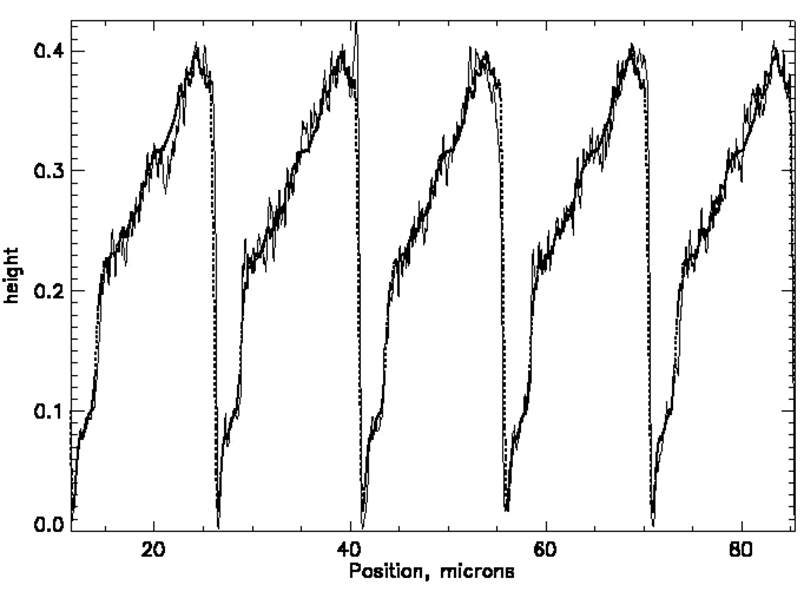

Portion of a stylus profilometer trace for the grating shown in Figs. 6 and 9. The stylus radius is 0.1 micron in the axis scanned. Solid: Raw data; dashed: Averaged per method described in the text.
