Fig. 62

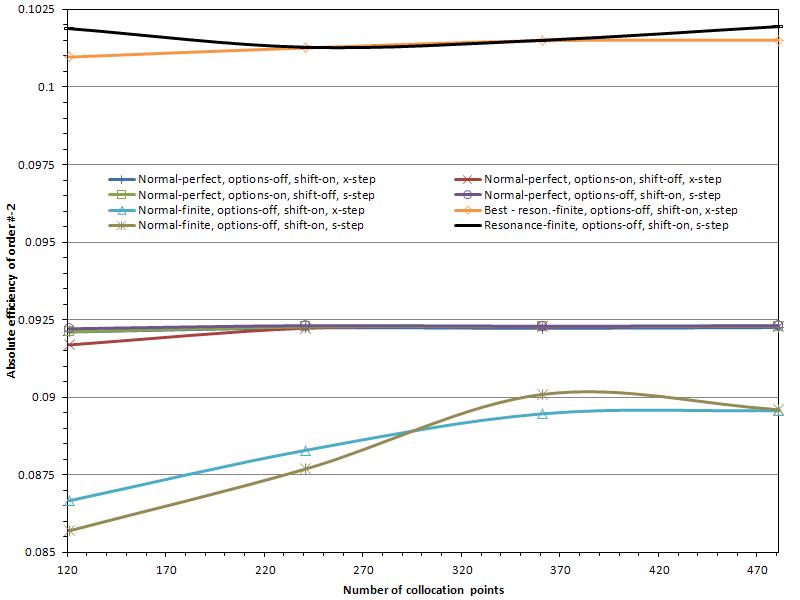

Convergence of absolute efficiencies of the multilayer MoRu/Be grating computed using “resonance” and “normal” calculation modes and different calculation options of PCGrate-SX v.6.1 at an angle of incidence of -13.9° in the -2nd order at an 11.4-nm wavelength vs number of collocation points.
